Types of dashboards

Last updated March 1st, 2024

Three basic types of dashboard are as follows:

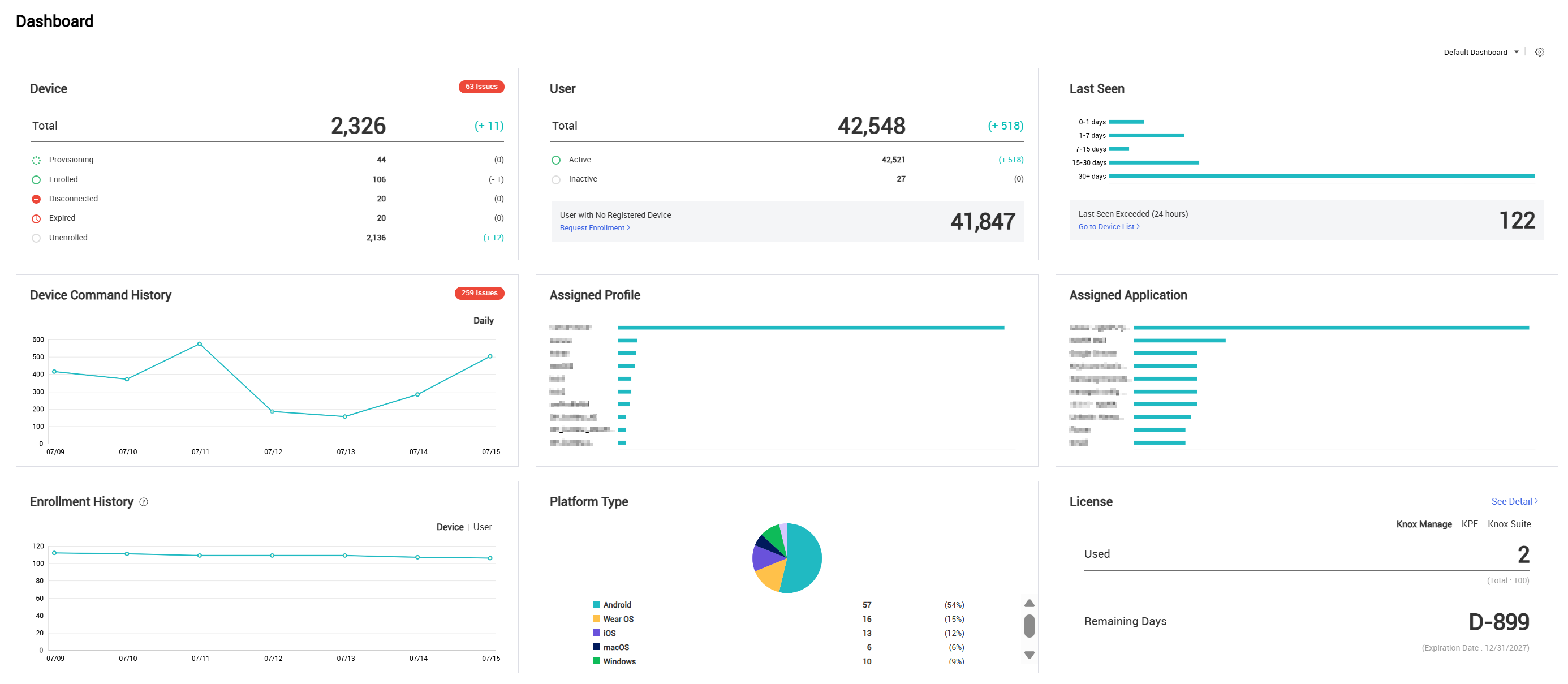

Default dashboard

Component Description
Device Status Displays the number of mobile devices by status and net changes in the total number of devices. Click the number to view the devices in detail.
Compliance Violation

Displays the number of mobile devices with compromised OSs, compromised apps, unapplied profiles, and the number of mobile devices that have not passed Android compatibility testing. Click the number to view the devices in detail.

Item Description
Compromised OS

A mobile OS is regarded as compromised in the following cases:

  • When a device is suspected of being a rooting device — for example, SuperUser authority — by the Knox Manage internal logic
  • When a device is suspected to have been compromised as a result of Attestation — such as Knox API inspection for OS compromise

Inspection for a compromised OS is performed whenever the Knox Manage agent is restarted or when any policies are applied on mobile devices.
Compromised App

An app is regarded as compromised when the app's hash value (CRC) is different from the one registered on the Admin Portal.

Inspection of compromised apps is performed whenever an app is installed or updated.
No profile Devices without profiles are counted.
Play Integrity (SafetyNet Attestation) Validates the integrity of the device.
OS Status Displays the number of enrolled devices by mobile OS. Click the number to view the devices in detail.
Device/User Displays the current numbers of enrolled devices and activated users and net changes in the numbers.
Users by Organization Displays the number of activated users by organization in descending order. Click See Detail to view the organization list.
Device Command History Displays the number of device commands sent from the Admin Portal and its change on a daily basis. Click See Detail to view the device command history list.
License Status Displays the remaining validity period of the longest license, the numbers of registrable devices and enrolled devices, and the remaining validity period of the shortest certificate.
Device location Displays the last location of devices and their information on Google Maps. All devices are displayed except for deactivated devices. Use the search field to search for a user ID.

To set to view the device locations, click Modify. In the Modify Default Dashboard window, click Use > OK.

EMM dashboard

Component Description
New User Weekly Displays the users newly added within a week.
App Download Top3 (Current) Displays the three most downloaded apps up to the current date.
Device Count by Platform Displays the number and ratio of enrolled devices by mobile OS. You can exclude or include the item to display by clicking the chart legend.
Device Count by Status Displays the number and ratio of enrolled devices by status. You can exclude or include the item to display by clicking the chart legend.

Device location

Displays the last location of devices and their information on Google Maps. All devices are displayed except for deactivated devices. Use the search field to search for a user ID.

Widget type dashboards

More widgets that can be selected for a widget type dashboard. The components of the default dashboard can be used as widgets.

Component Description
Assigned Content Displays up to ten of the most assigned content items.
Android Management Type Displays the number of Android devices by management type.
Users by Organization Displays the number of activated users by organization in descending order.
Group & Organization Displays the number of groups and organizations.
AD/LDAP Displays the number of updated devices through AD/LDAP sync.
Device Location Displays the last location of devices and their information on Google Maps. All devices are displayed except for unenrolled devices. Use the search field to search for a user ID.
